Gas cleaning systems — DWG. 2026 / JINAN WORKS
Wet scrubbers
engineered to spec.
Packed-bed towers, cross-flow scrubbers and acid-mist systems, calculated from your airflow and pollutant — then fabricated, water-tested and shipped in container sections.
Ø 400–4000 mm
1–3 packing stages
PP · PVDF · FRP
HCl — HF — NH₃ — SO₂ — H₂S — CrO₃ mist — acid fume — odor — VOC polishing — 1,000 to 100,000 m³/h — HCl — HF — NH₃ — SO₂ — H₂S — CrO₃ mist — acid fume — odor — VOC polishing — 1,000 to 100,000 m³/h —
100k
m³/h max airflow per tower
90–99%
typical soluble-gas removal
100%
towers water-tested before packing
24 h
sizing & quotation response
Product sheets 01–06
Six systems. One factory.

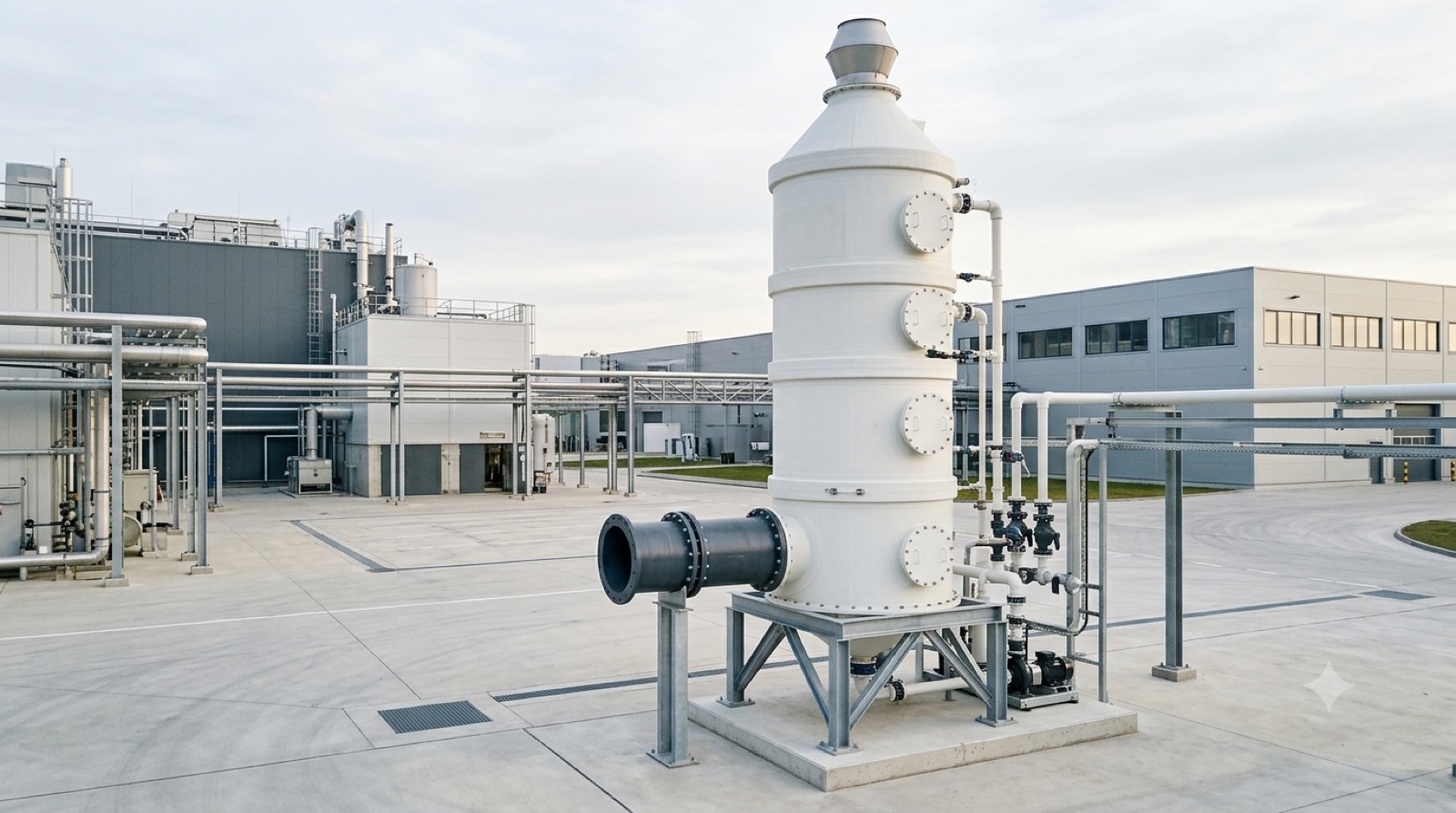

Sheet 01 — vertical tower
Packed-Bed Spray Towers
Counter-flow, 1–3 stages, demister top — the standard answer for acid fumes, NH₃ and odor.
1,000–100,000 m³/h · Ø0.4–4 m

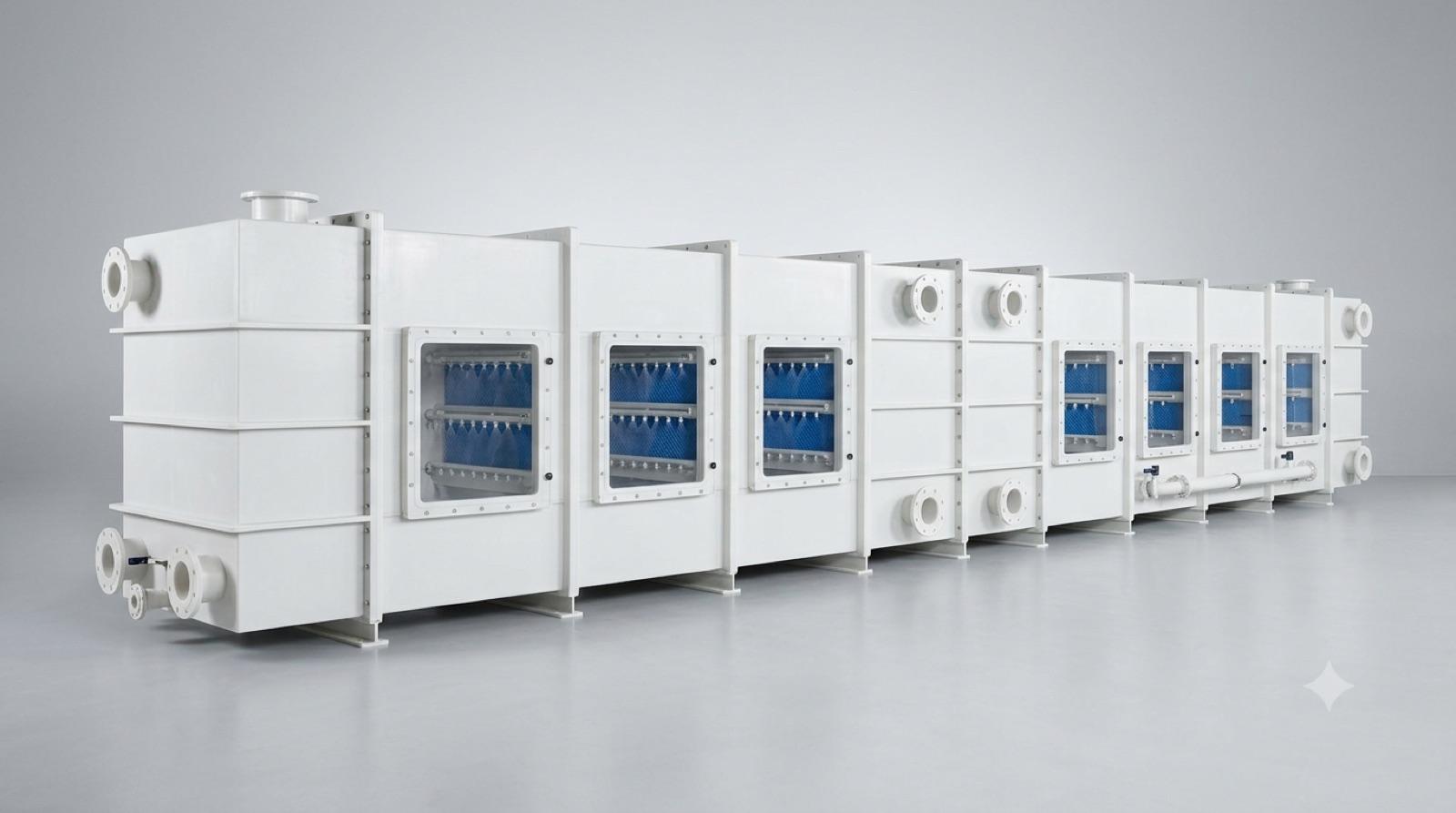

Sheet 02 — cross-flow
Cross-Flow Scrubbers
Multi-stage scrubbing in a low-profile housing for rooftops and tight mezzanines.
≤60,000 m³/h · H from 1.8 m

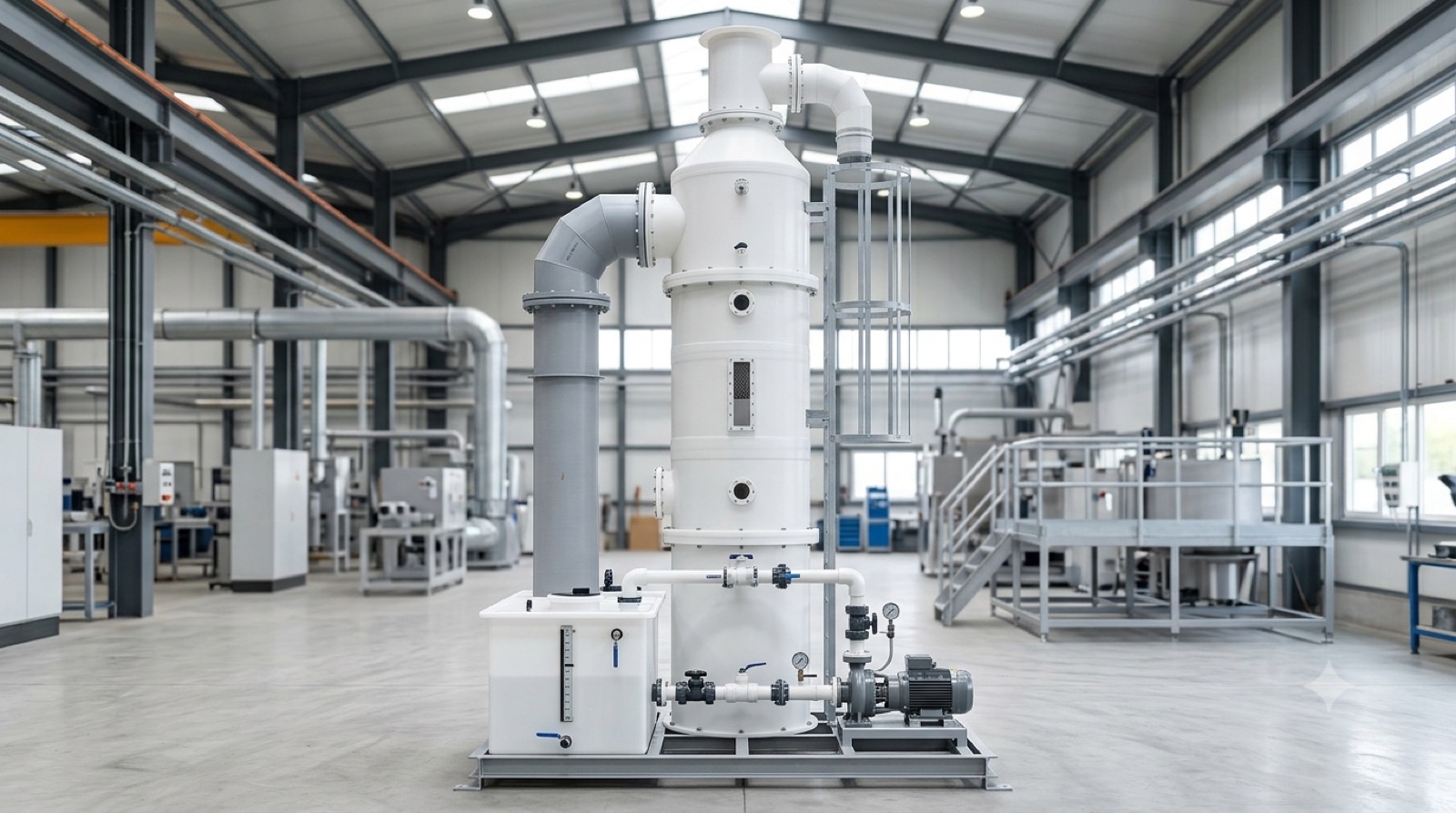

Sheet 03 — acid mist
Acid Mist Towers
Compact towers with integrated recirculation for pickling and plating lines.
HCl · H₂SO₄ · mixed acid

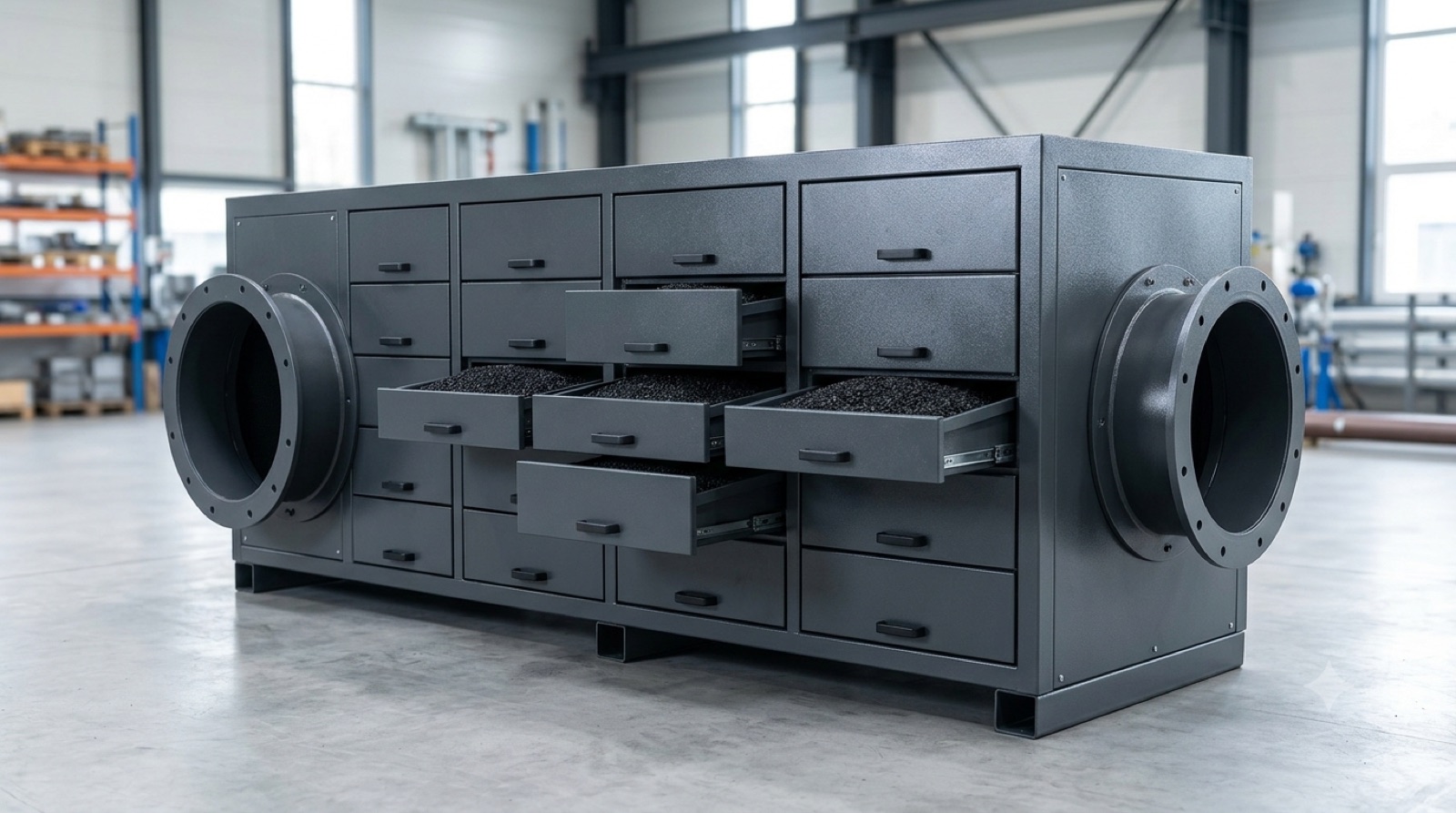

Sheet 04 — adsorption
Carbon Adsorption
Drawer-type polishing for VOC and residual odor, standalone or after scrubbing.
0.2–10 m³ carbon · ΔP ports

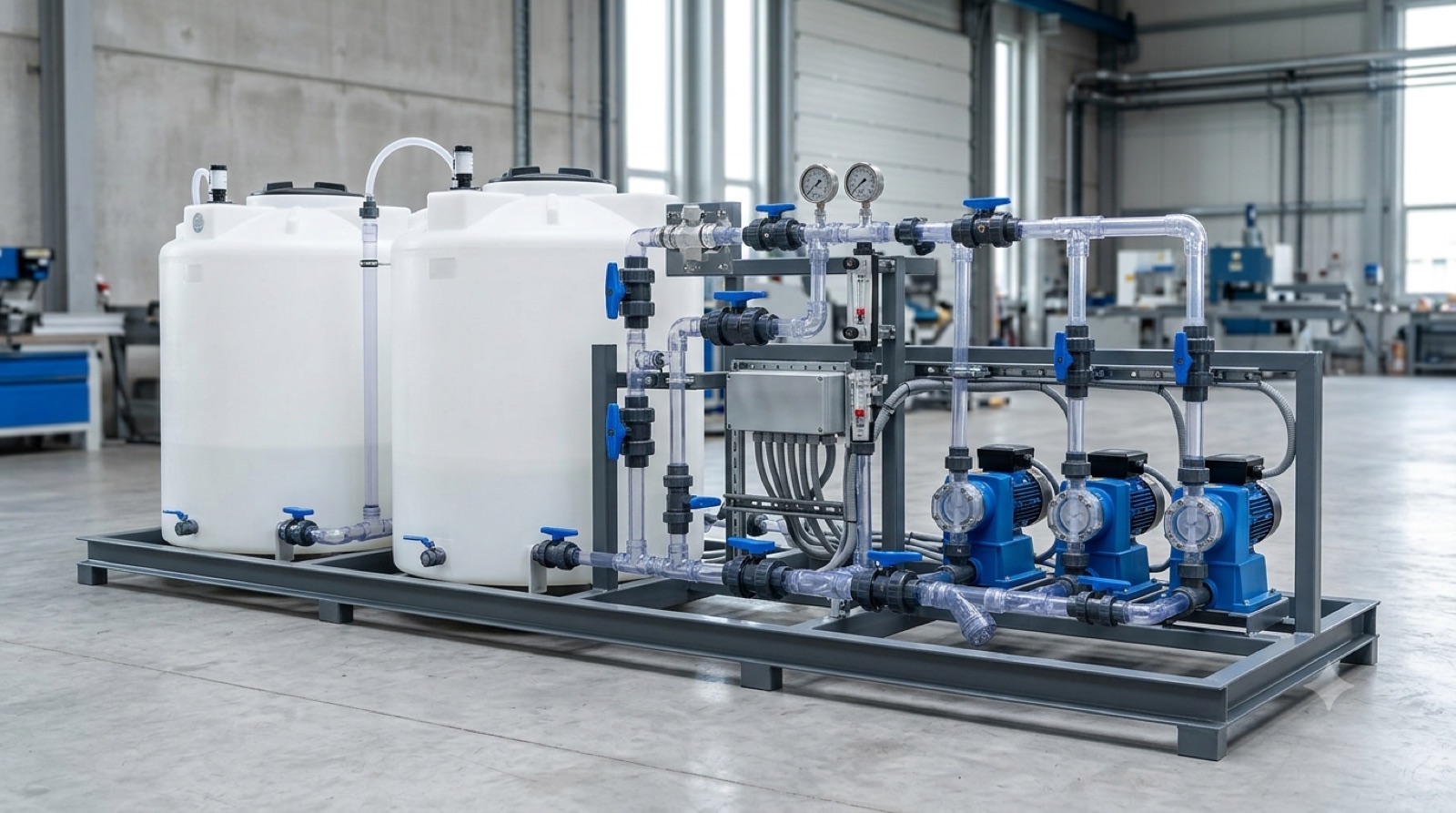

Sheet 05 — dosing
Dosing & Recirculation
PP tanks, metering pumps and pH/ORP panels — pre-piped, pre-wired, wet-tested.
1–100 m³/h · auto pH/ORP

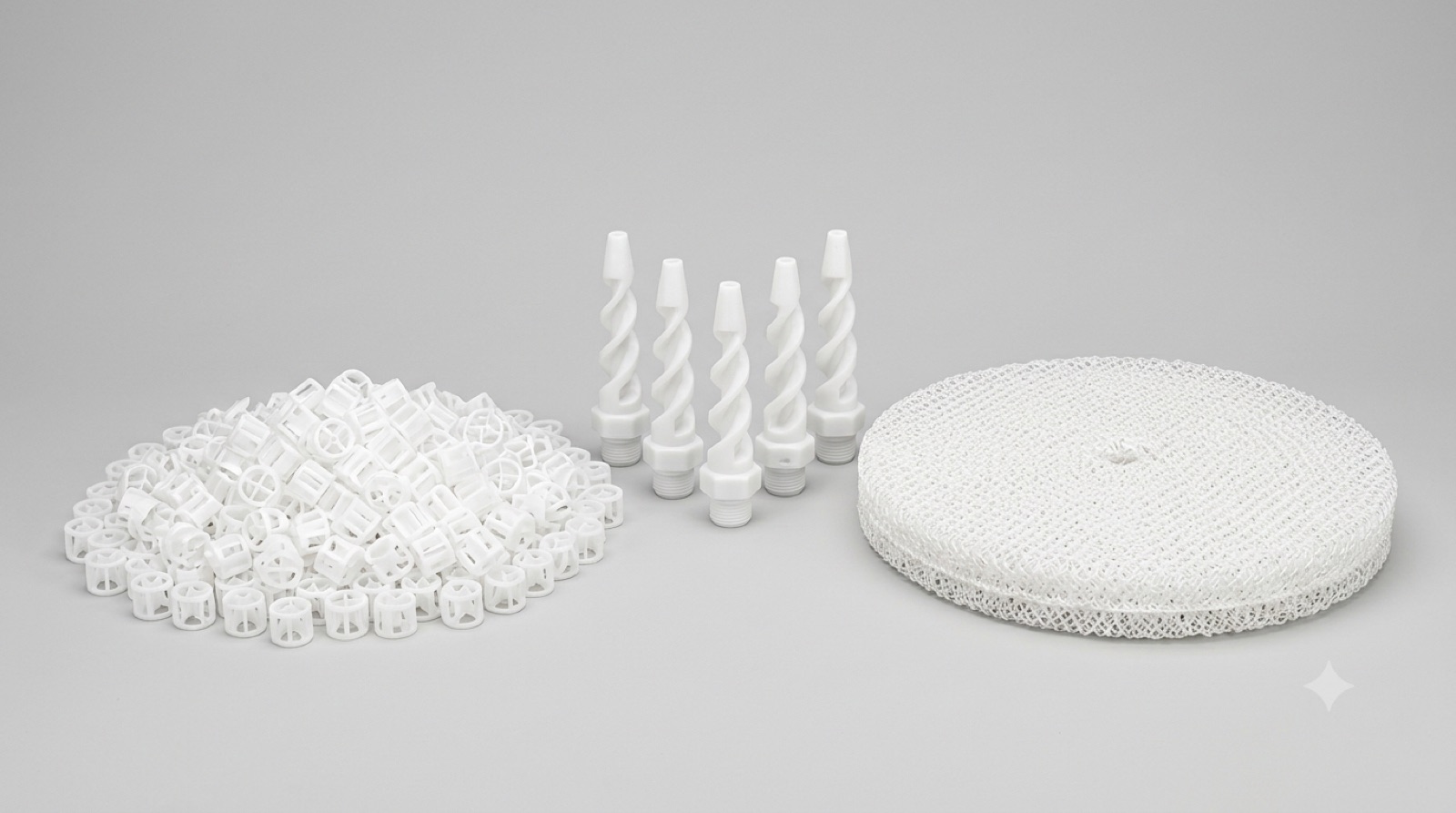

Sheet 06 — internals
Internals & Spares
Pall rings, nozzles, demisters and grating, molded in-house for any brand of tower.
rings 16–76 mm · to tower Ø
From inquiry to running scrubber
1
Gas data in
flow, pollutant, concentration
2
Sizing & quote
Ø, stages, fan duty, price — 24 h
3
Fabrication
welded from our own PP sheet
4
Water test
leak & spray pattern, documented
5
Ship & support
container sections, install guidance
Scrubbing duty across
Electroplating & anodizing
Acid pickling lines
Chemical & pharma
PCB & semiconductor
Wastewater odor
Food & rendering
Send your gas data.
airflow m³/h · pollutant · concentration → tower Ø, stages, fan duty, price — within 24 h
